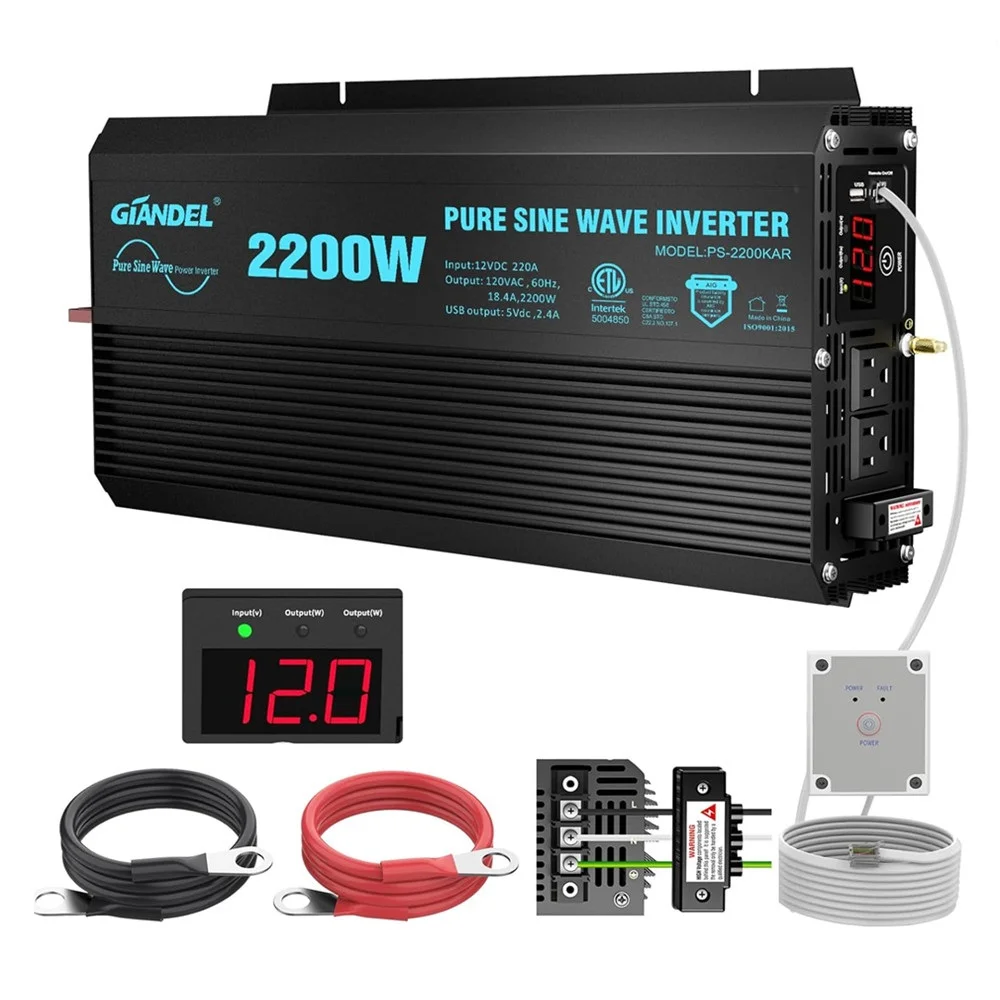

Giandel 2200W Pure Sine Wave Inverter 12V DC to 110V 120V AC ETL Listed UL458 STD

12V Pure Sine Wave Power For Home And RV Backup

The 2200W pure sine wave inverter converts 12V DC battery power into 120V AC output for appliances that need cleaner current and steady operation. With 2200W continuous power, this model offers more capacity than many 2000W units while keeping a practical size for RVs, trucks, homes, and small solar systems. Its low THD output helps support sensitive electronics, while the LED display gives users a clear view of input voltage, output power, and protection status.

Low THD Inverter With Hardwire Output And LED Display

Giandel gives this model a 20-amp hardwire terminal block for heavier connected loads within the rated range. Two AC outlets and one USB port support common devices, while the 15-foot wired remote lets users control the unit from a more convenient position. The included pure copper cables help handle higher current more safely when the setup follows the product manual.

• 2200W continuous pure sine wave output from 12V batteries
• Low THD performance for smoother appliance operation
• 20-amp hardwire terminal block for higher-load connections
• LED display for input voltage, output power, and protection mode
• 15-foot wired remote, aluminum alloy housing, and cooling fan

Safety design plays a large role in daily use. This inverter includes isolated input and output design, soft start technology, and protection against over voltage, low voltage, overload, short circuit, overheating, and reverse polarity. CETL listing under CSA22.2 and UL458 standards supports safer use in vehicle, backup, and off-grid power setups.

The aluminum alloy housing helps protect the unit from knocks while supporting heat release during longer operation. A high-speed cooling fan helps manage temperature when appliances draw steady power. Giandel recommends a 200Ah or larger battery system to help the inverter work longer and handle heavier loads with better stability.

For users who need a mid-to-high power 12V system, the 2200W pure sine wave inverter brings together low distortion output, hardwire capability, clear monitoring, and stronger warranty support. It suits RV equipment, home backup loads, small solar systems, and appliances under the rated wattage.

SPECIFICATIONS:

• Power: 2200watts rating power
• Output Wave: Pure Sine Wave
• Input Voltage: 9.8-16VDC
• Output Voltage: 120VAC±10%
• USB:DC5V 2.4A
• Standby current: 2 amps
• Efficiency: up to 91%
• THD≤3%
• LED Display: Shows battery voltage,output power,protection modes.
• Remote Controller with 15ft cables
• Built-in intelligent cooling fan: Will run automatically when the temperature reaches 104℉ or load power is more than 40% of rated power.
• Over-temperature Protection: Around 149℉
• Over-voltage Shutdown: 16V±0.5VDC
• Under-voltage Alarm: 9.8V±0.5VDC
• Under-voltage Shutdown: 9.5V±0.5VDC
• Over load protection: 2200W-2500W

ATTENTION:

• Connect the inverter to a 12V battery with the standard cables provided with product, and plug your AC devices into the inverter.
• Please do not leave the power inverter in the ON position while your car is off.
• Disconnect the positive battery terminal before doing any wiring to the inverter.
• Do not put the inverter into sunlight directly, keep it in cool and dry environment.
• Don’t use the inverter with a product that draws a higher wattage the inverter can provide, as this may cause damage to the inverter and product.

PACKAGE LIST:

• 1x 2200watt Sine wave Power Inverter
• 2x Battery Cables (black and red)
• 1x Remote Controller
• 1x User Manual
