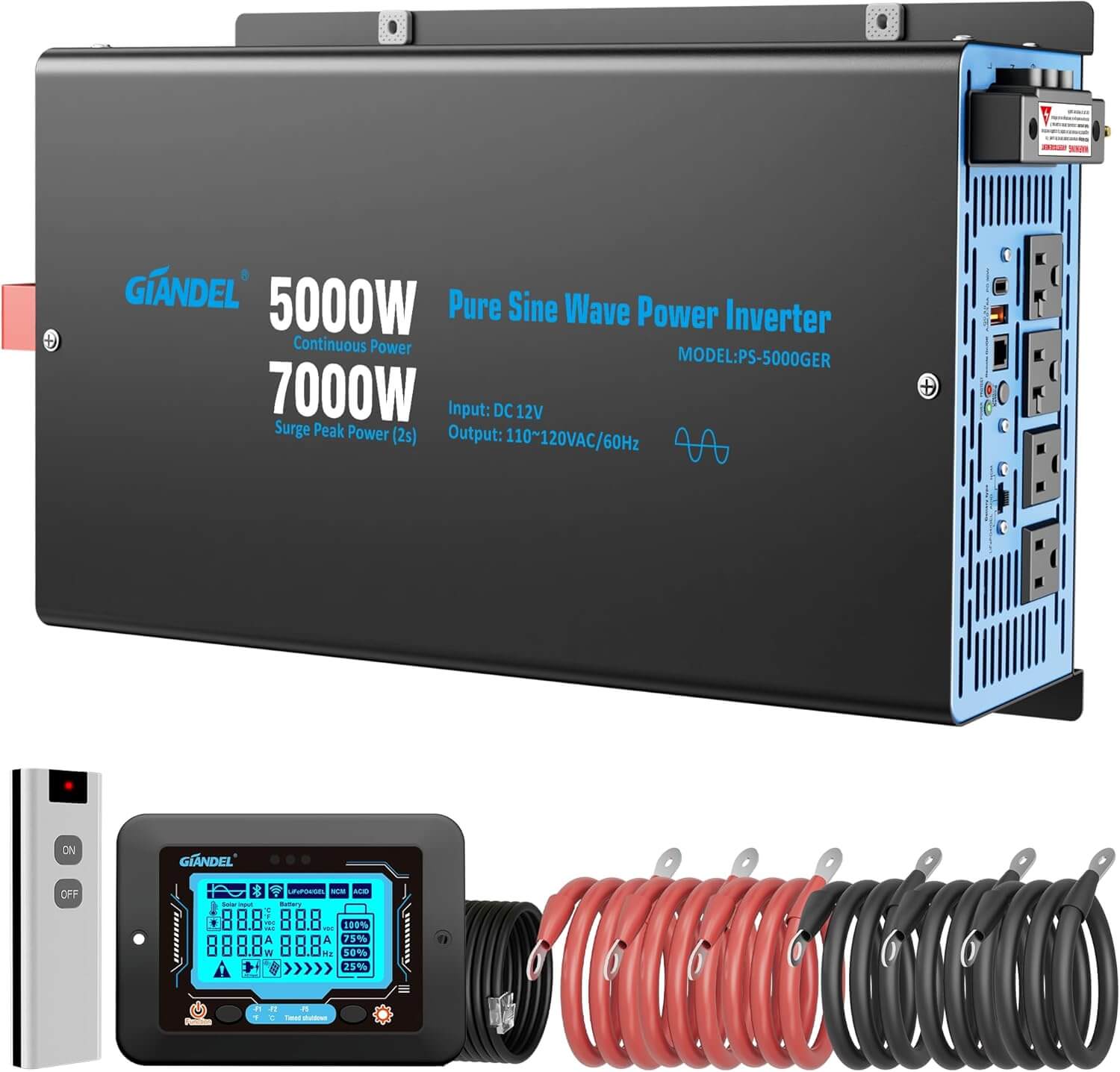

The 5000W pure sine wave inverter is designed for larger 12V battery systems that need strong AC output plus closer control over battery behavior. It converts 12V DC power into stable 120V 60Hz AC output for RVs, vessels, off-grid solar systems, trucks, and job-site setups. Its 7000W short peak support helps compatible high-startup appliances such as water pumps, air conditioners, microwaves, air compressors, and other sensitive high startup power equipments.
Battery compatibility is a core advantage of this model. The inverter supports common 12V battery types, including LiFePO4, lead-acid, ternary lithium, and other compatible setups. The side toggle switch helps users choose the battery type more directly, which is useful in RV and solar systems where battery chemistry affects protection behavior.
Unlike standard high-wattage inverters, this model offers enhanced flexibility for system monitoring and control. It features a 30-foot wired remote with an LCD display, complemented by a wireless controller with a range of up to 50 feet. The wired remote conveniently displays real-time battery levels, output wattage, and error codes from an easily accessible location.
|
Inverter Specifications |
|
|
Model |
PS-5000GER |
|
Waveform |
Pure Sine Wave |
|
Continuous Power |
5000W |
|
Surge Power |
7000W(for 2S) |
|
DC Input |
12V DC |
|
AC Output |
120V AC 60Hz |
|
AC Output Sockets |
4 |
|
AC Terminal Block |
1 |
|
Power Output Control |
On/Off Switch,Wired Remote,Wireless Controller |
|
Total Harmonic Distortion (THD) |
≤3% |
|
Efficiency |
>92% |
|
Nominal input voltage |
9.5--16V DC |
|
Nominal output voltage |
120VAC±10% |
|
Standby Current |
2 .5 amps |
|
LED Display |
Shows battery voltage,output power, |
|
Security protection specifications |
|
|
Over-voltage Shutdown |
16V±0.5VDC |
|
Under-voltage Alarm |
9.8V±0.5VDC |
|
Under-voltage Shutdown |
5V±0.5VDC |
|
Low input Voltage Alarm |
9.8V+/-0.5V (The alarm will remind users to recharge the batteries intime) |
|
Low input Voltage Protection |
9.5V +/-0.5V (Inverter screen shows "LO" code and beeps continuously ) |
|
Short Circuit Protection |
If the load short circuited,the inverter will show "OL" code |
|
Over Load Protection |
Inverter screen shows "OL " code if load exceeds 50001-5200 watt |
|
High Input Voltage protection |
16V+/- 0.5V (Inverter stops working and gives "HI" code) |
|
Over heat protection |
65±5℃ (149℉) |
|
Mechanical Specifications |
|
|
Item Dimensions |
18.9 x 10.4 x 4.3 in |
|
Item Weight |
6.9KG |
|
Battery Cables |
2AWG 2Feet *6 |
|
Wired Remote |
30 Feet; Type :4P4C |
|
Wireless Controller |
50 Feet |
|
Warranty |
|
|
Material and workmanship warranty |
18-Month |
