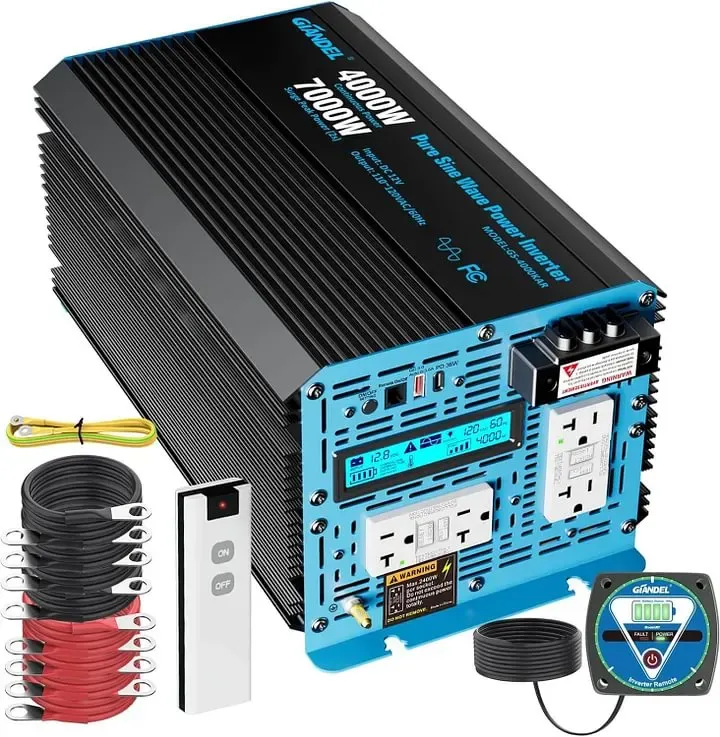

Power your entire off-grid setup or backup system without compromise. This heavy-duty 4000W 12V pure sine wave inverter efficiently converts 12V DC battery power into stable, clean 120V AC electricity. Delivering an incredible 4,000W of continuous power and a 7,000W surge peak, this model is built to effortlessly run high-startup, power-hungry appliances—including water pumps, air conditioners, microwaves, hair dryers, and air compressors. Its premium pure sine wave output provides sensitive electronics with clean current, protecting your valuable gear while eliminating annoying background noise.
4000W Continuous / 7000W Surge Peak: Heavy-duty power designed for demanding large appliances.
UL-Listed 20A GFCI Outlets: Industrial-grade ground fault protection right at the plug level.
Dual Control Flexibility: Includes both a 30ft wired remote and a convenient wireless remote.
Smart Battery Profiling: Adjustable low-voltage protection thresholds (9.5V to 11.5V).
Industrial-Grade Connection: Comes with heavy-duty, fully insulated ring terminal cables for maximum safety.
Take full command of your power supply. This model combines heavy output with ultimate user control. The oversized, crystal-clear LCD screen keeps you completely informed by displaying real-time input/output voltage, load power, frequency, battery status, and safety protection codes. For maximum flexibility, the 30-foot wired remote lets you manage power from inside your RV cabin, while the wireless remote provides instant backup control from a distance. Built-in UL-listed 20-amp GFCI outlets provide premium ground fault shock protection wherever you go.
Designed to adapt seamlessly to your DIY power configuration, this inverter features advanced battery compatibility. It fully supports 12V LiFePO4 (Lithium), lead-acid, ternary lithium, and other matching battery types. To protect your battery bank from over-discharge, you can custom-adjust the low-voltage protection threshold from 9.5V to 11.5V through the simple interface, tailoring the system to your precise power preferences.
Built for life on the road or in the wilderness. Our inverter features a rugged aluminum alloy housing that accelerates heat dissipation while defending the core from bumps and drops during travel. For a high-output 4000W system, safety is non-negotiable—that's why we include fully insulated ring terminal cables, providing a far more secure and safer connection than risky, plastic-covered alligator clips.
The system also includes a comprehensive multi-protection suite guarding against undervoltage, overvoltage, overtemperature, overloading, and short circuits.
Whether you are upgrading your RV power grid, rigging a heavy-duty camper, or setting up emergency home backup, this 4000W pure sine wave inverter is the ultimate heavy-lifter. It combines massive continuous wattage, outlet-level GFCI safety, adjustable battery management, and dual remote control into one reliable powerhouse that standard inverters simply can't match.
|
Inverter Specifications |
|
|
Model |
GS-4000KAR-12V |
|
Waveform |
Pure Sine Wave |
|
Continuous Power |
4000W |
|
Surge Power |
7000W(for 2S) |
|
DC Input |
12V DC |
|
AC Output |
120V AC 60Hz |
|
GFCI Output Sockets |
4 |
|
AC Terminal Block |
1 |
|
Power Output Control |
On/Off Switch,Wired Remote,Wireless Controller |
|
Total Harmonic Distortion (THD) |
≤3% |
|
Efficiency |
>91% |
|
Nominal input voltage |
9.5--16V DC |
|
Nominal output voltage |
120VAC±10% |
|
Standby Current |
2.0-2.5 amps |
|
LED Display |
Shows battery voltage,output power, |
|
Security protection specifications |
|
|
Over-voltage Shutdown |
16V±0.5VDC |
|
Under-voltage Alarm |
9.8V±0.5VDC |
|
Under-voltage Shutdown |
5V±0.5VDC |
|
Low input Voltage Alarm |
9.8V+/-0.5V (The alarm will remind users to recharge the batteries intime) |
|
Low input Voltage Protection |
9.5V +/-0.5V (Inverter screen shows "LO" code and beeps continuously ) |
|
Short Circuit Protection |
If the load short circuited,the inverter will show "OL" code |
|
Over Load Protection |
Inverter screen shows "OL " code if load exceeds 4001-4200 watt |
|
High Input Voltage protection |
16V+/- 0.5V (Inverter stops working and gives "HI" code) |
|
Over heat protection |
65±5℃ (149℉) |
|
Mechanical Specifications |
|
|
Item Dimensions |
14.3 x 8x 6.8 in |
|
Item Weight |
6.88KG |
|
Battery Cables |
5AWG 2Feet *8 |
|
Wired Remote |
30 Feet; Type :4P4C |
|
Wireless Controller |
50 Feet |
|
Warranty |
|
|
Material and workmanship warranty |
12-Month |
