Specifications:
• Output wave: pure sine wave
• Power (2 AC Outlets): 2200W Rated, 4400W peak
• USB output: 1xDC 5V/2.4A(max)
• THD<3%
• Efficiency 90%
• Nominal input voltage:9.8-16VDC
• Nominal output voltage: 110-125VAC
• Internal fuses:8*30A
• Battery cables:one pair with length of 2 ft
• Remote controller: remote controller with 15ft cable. More convenient to control the inverter ON/OFF
• LED display: voltage,current,power display
• 20A solar charge control:suitable to connect MAX 300Watt(15-18V,open volt 22V) solar panel
• Battery Charging status indicator: indicates battery voltage while charging by solar panel
• Battery select switch: set to GEL or SLA according to your battery
More details and tips:
• connect the inverter to a 12V battery, and plug your AC devices into the inverter
• Please do not leave the power inverter in the ON position while your car is off.
• Disconnect the positive battery terminal before doing any wiring to the inverter
• Do not put the inverter into sunlight directly, keep it in cool and dry environment
• Don’t use the inverter with a product that draws a higher wattage the inverter can provide,as this may cause damage to the inverter and product

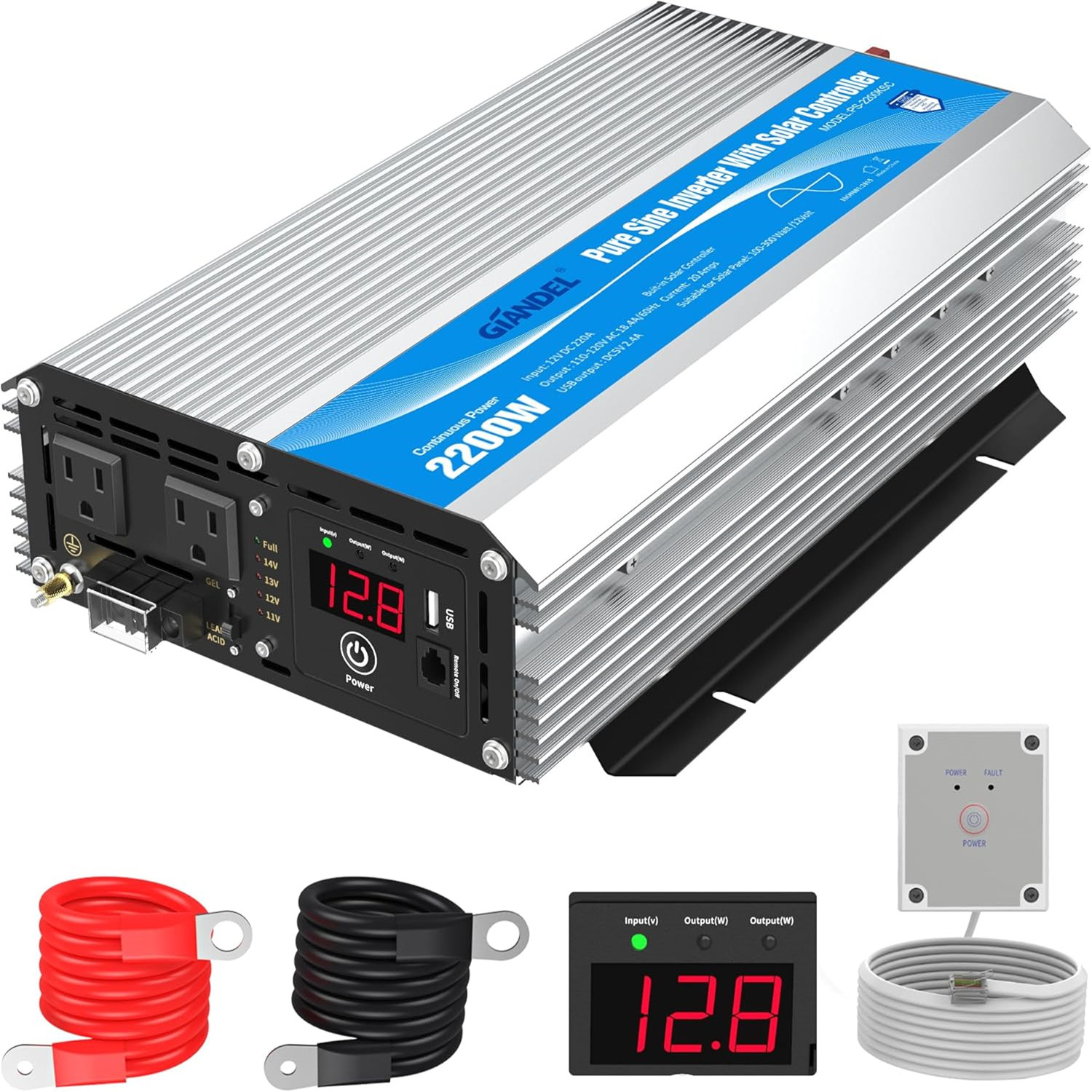

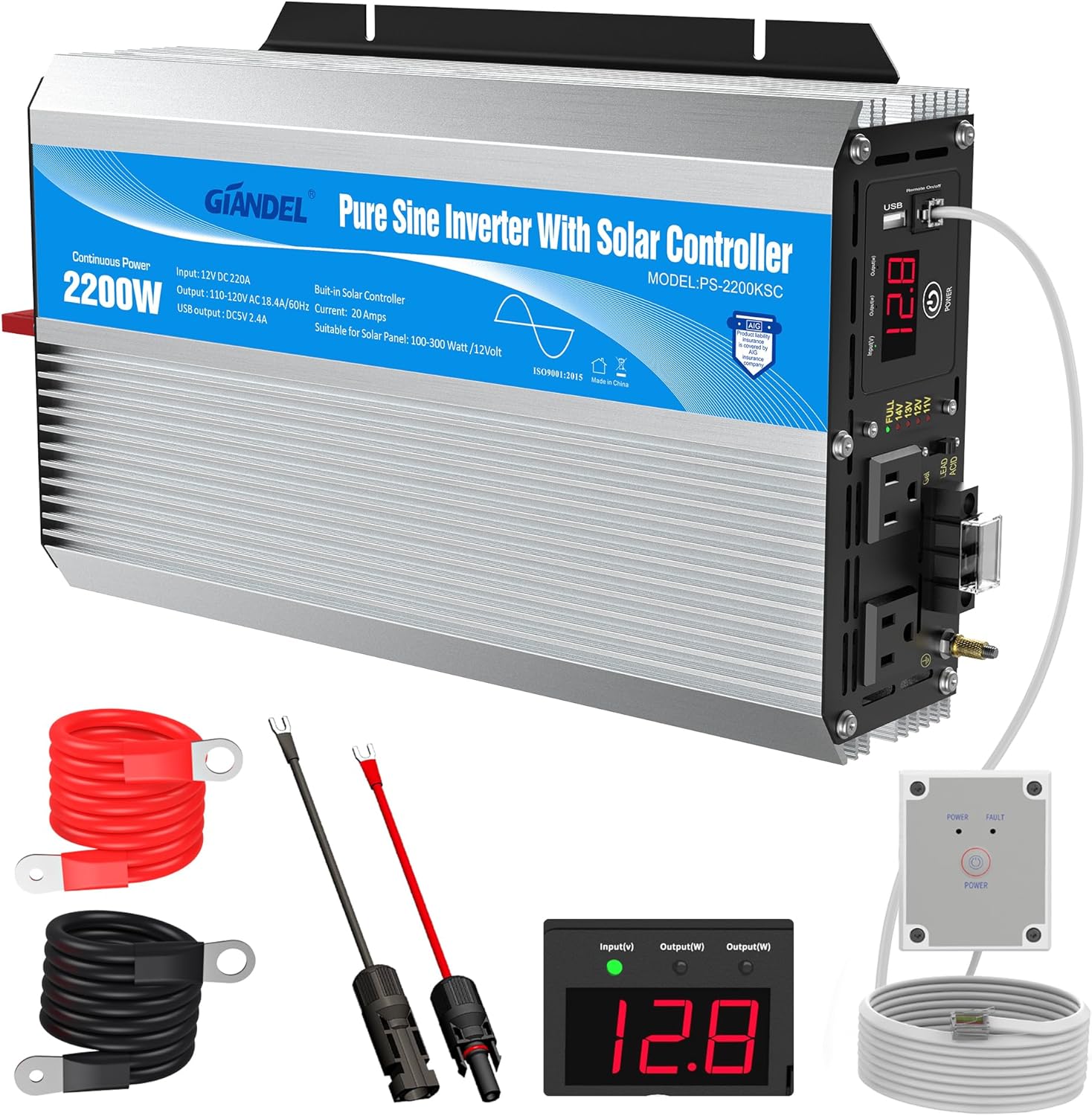

Package List:
• 1x 2200W Power Inverter
• 2x Battery Cables
• 1xRemote Controller with 15 ft Cable
• 1xUser Manual
