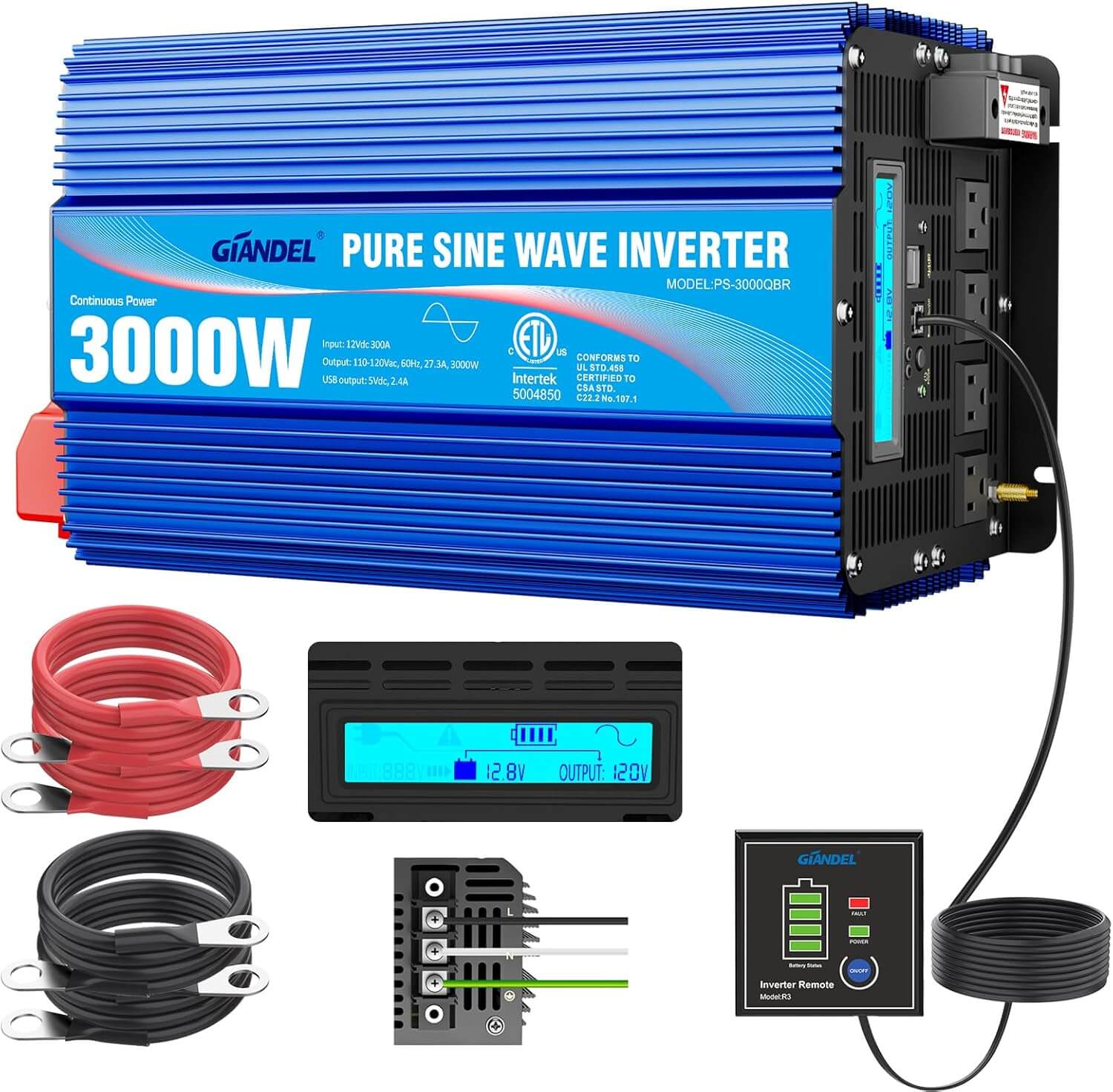

Giandel PS-3000QBR is a high-performance 3000W Pure Sine Wave Inverter designed for heavy-duty applications.This pure sine wave inverter has been approved by ETL with UL 458 standard. It converts 12V DC battery power to stable 120V 60Hz AC, same as household grid power.Which is ideal to install in RVs, Vessels,Off Grid Solar system for water pump,air conditioner, hair dryer, microwave,air compressor and other sensitive high startup power equipments.
【Pure Sine Wave Inverter 】This is a true rated 3000Watt Pure Sine Wave inverter,provides 3000W continuous power.Providing clean power to your devices. Please prepare 300Ah or up battery for this heavy duty 3000Watt inverter.
【Wide Compatibility 】Widely applications for Indoor and outdoor uses- Ideal for RVs, Boats, and power failure emergencies with this 3000W heavy duty inverter. 4 AC outlets for multi-purpose emergency use on vacations, business trips, and camping.2 X2.4A USB automatically detect your devices to charge them fastest up to 2.4Amps.A must in case of emergencies like hurricane, storm, outage, etc.
【Advanced Protection】Fully protect your devices by Over voltage,Low voltage,Overload,Short circuit,Over heat,polarity reverse protection(fuse).Auto-restart function & GND protection from leakage of electricity (lightning stroke).Isolated Input/Output Design and Soft start technology.
【 LCD Display and Remote Control】 Wall switch sized remote Control with light indicators for better monitoring battery level indicator,protection alarm,with 30ft 4P4C cable,RJ10 plug.
|
Model |
PS-3000QBR |
|
Waveform |
Pure Sine Wave |
|
Continuous Power |
30000W |
|
Surge Power |
6000W |
|
DC Input |
12V DC |
|
AC Output |
120V AC 60Hz |
|
USB output |
2xDC 5V/2.4A(max) |
|
THD |
≤3% |
|
Efficiency |
>92% |
|
Nominal input voltage |
9.8--16V DC |
|
Nominal output voltage |
120VAC±10% |
|
Standby Current |
2 amps |
|
Over-voltage Shutdown |
16V±0.5VDC |
|
Under-voltage Alarm |
9.8V±0.5VDC |
|
Under-voltage Shutdown |
5V±0.5VDC |
|
LED Display |
Shows battery voltage,output power, |
|
Low input Voltage Alarm |
9.8V+/-0.5V (The alarm will remind users to recharge the batteries intime) |
|
Low input Voltage Protection |
9.5V +/-0.5V (Inverter screen shows "LO" code and beeps continuously ) |
|
Short Circuit Protection |
If the load short circuited,the inverter will show "OL" code |
|
Over Load Protection |
Inverter screen shows "OL " code if load exceeds 3001-3200 watt (Do not power up appliances more than 3000 watt) |
|
High Input Voltage protection |
16V+/- 0.5V (Inverter stops working and gives "HI" code) |
|
Over heat protection |
65±5℃ (149℉) |
|
Dimensions |
15.2 x 7.8 x 6.5 in |
|
Weight |
16 lb |
1x 3000W Power Inverter
2 pairs of Battery Cables
1xRemote Controller with 30 ft Cable
1xUser Manual
18 Months Official Warranty
Connect the inverter to a 12V battery, ensure your battery is big enough and fully charged,and plug your AC devices into the inverter
Do use inverter while charging battery; Do not use appliances exceed 3000 watt.
Please do not leave the power inverter in the ON position while your car is off.
Disconnect the positive battery terminal before doing any wiring to the inverter
Do not put the inverter into sunlight directly, keep it in cool and dry environment
Q1: What voltage does this inverter output?
A1: Standard 120V 60Hz AC output, designed for United States household appliances.
Q2: Is the PS-3000QBR inverter certified for the US market?
A2: Yes, it is ETL listed to UL 458 standard , fully compliant for use and sale in the United States.
Q3:What size battery bank do I need for a 3000W inverter?
A3:For optimal performance, we recommend a minimum 12V 300Ah Lead-Acid or 150Ah Lithium (LiFePO4) battery bank to support heavy loads at 3000 watts.
