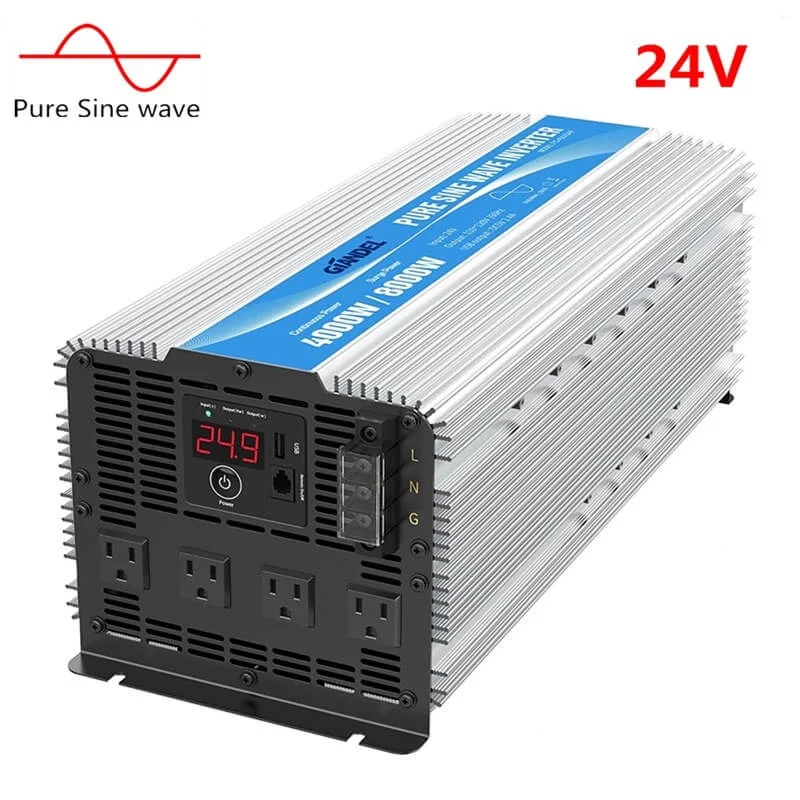

Take full control of your heavy-duty off-grid setup. This 4000W 24V pure sine wave inverter efficiently converts 24V DC battery power into stable, utility-grade 120V AC electricity. Engineered for high-capacity 24V RV power systems, trailers, boats, off-grid solar setups, and emergency backup, this heavy-duty workhorse easily handles demanding appliances. Featuring four standard AC outlets, a 30-amp hardwire terminal block, and a dedicated USB port, it provides multiple flexible connection pathways to safely run your gear within its rated capacity.
4000W Continuous / 8000W Surge Peak: Robust power to seamlessly start demanding inductive loads.
24V High-Efficiency System: Lower current draw, less wiring heat, and optimized for large battery banks.
30A Hardwire Terminal Block: Safely routes the inverter’s maximum heavy-load power directly into your breaker panel.
30-Foot Wired Remote Control: Effortless on/off operation from the comfort of your living space or cab.
ETL Certified (UL458 Standard): Professional North American safety standards with built-in leakage grounding protection.
This model is built for professional, clean installations. The included 30-foot wired remote and crisp LED display allow you to check operating status and control the unit effortlessly—even if the inverter is tucked away in a closed battery box or equipment compartment. To unlock its full potential, the integrated 30A hardwire terminal block lets you safely hardwire heavy appliances directly, providing a much more stable and permanent connection path than standard wall plug-ins.
Safety and durability are paramount in high-output 24V configurations. Encased in a rugged aluminum alloy housing, the inverter is fully protected against bumps, drops, and vibrations during travel. Its advanced isolated input/output design, paired with smart soft-start technology, manages heavy appliance startups smoothly without tripping the system.
Comprehensive protections safeguard your entire system against overvoltage, undervoltage, overloading, short circuits, overheating, and reverse polarity. Plus, an intelligent cooling fan runs efficiently to keep the unit cool during extended operations.
Continuous Power Output: 4000W Rated
Surge Power Capacity: 8000W Peak
Output Waveform: True Pure Sine Wave
Total Harmonic Distortion (THD): < 3%
Conversion Efficiency: 91%
No-Load Current Draw: 1.5 Amps
Overload Protection Threshold: 4000W – 4400W
Nominal Input Voltage Range: 19.6V – 32.0V DC
Nominal Output Voltage: 110V – 120V AC
Internal Fuses: 8 × 30A
Included Battery Cables: 2 Pairs (Length: 2 ft)
Wired Remote Cable Length: 30 ft
USB Output Port: 1 × DC 5V / 2.4A (Max)
LED Status Display: Real-time Voltage, Current, and Power Tracking
Read First: Please read the user manual thoroughly before operation or if you have any technical queries.
Standard Connection: Connect the inverter to your 24V battery bank using only the standard, heavy-duty battery cables included in the package.
Battery Care: Do not leave the power inverter in the "ON" position while your vehicle or RV engine is shut off to prevent unnecessary battery drain.
Wiring Safety: Always disconnect the positive (+) battery terminal before performing any wiring adjustments or maintenance on the inverter.
Optimal Environment: Keep the inverter in a cool, dry, and well-ventilated space. Avoid placing it under direct sunlight.
Know Your Loads: Do not use this inverter with any appliance that draws higher wattage than the inverter can continuously provide, as this may cause permanent damage to both the inverter and your appliance.
